Foreword

​ 北京已经快入冬了。笔者今早差点冻死在自行车上。

​ 最近事情很多很多，但是想了一想还是觉得需要写一篇博客记录这段不凡的旅程。如若没有一个稳定的记录，恐怕过几天也会被笨人遗忘，故下定决心以记之。

​ 此外，笔者忙里偷闲安置了一个子域名网站做随笔日记本，但是cloudflare配置最近出了点问题，感兴趣的朋友可以先搜索http://101.200.30.9:6277/（放在这里会不会不太安全），后续将以echo.0mnilink.top的形态和大家见面，笔者会在里面定期真实发疯，更抽象、更贴近生活😮

Beginning of the story

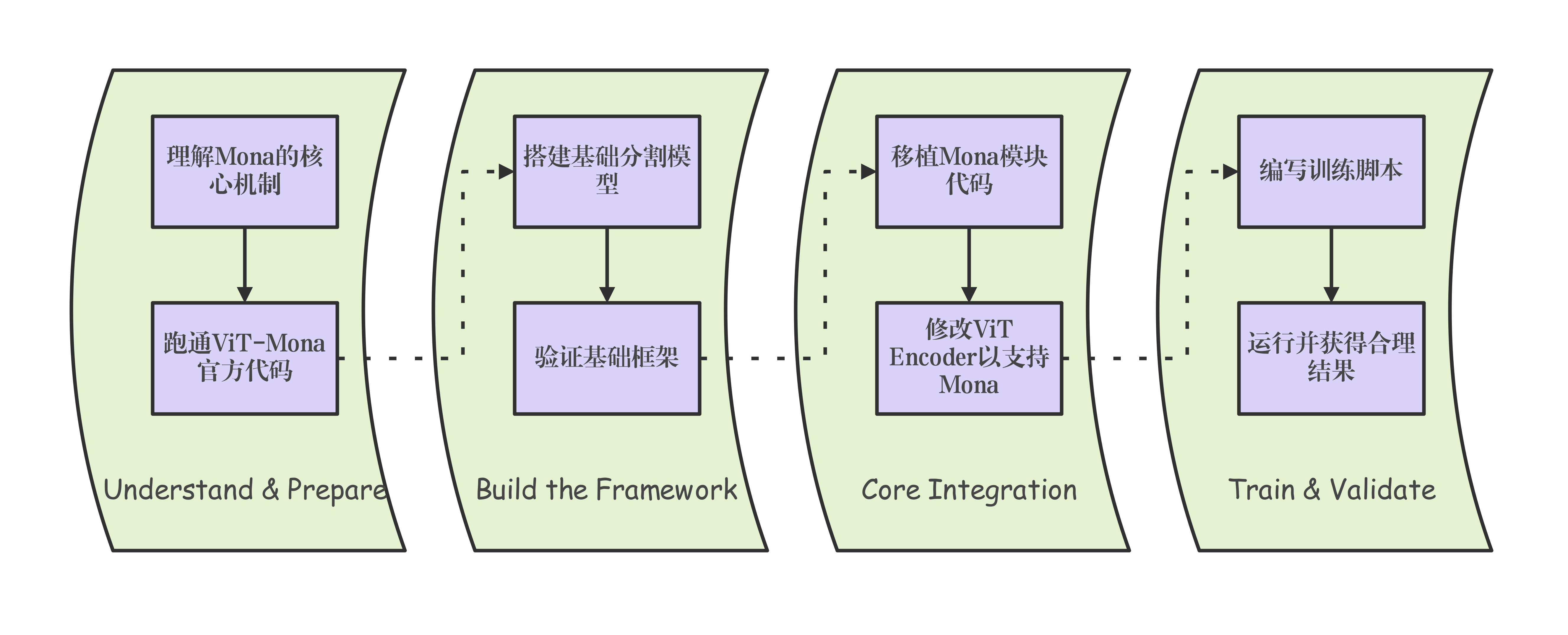

​ 我们的核心目标就是学习、了解adaptor微调模型的部分细节与项目框架，并且和调研需求紧密结合，最后给出一个比较reasonable的result，思路流程如图所示： pipeline

​ 这篇博客将作为记录型博客持续更新，伴随笔者完成每一步的任务！事不宜迟，准备出发！

Understand & Prepare

理解Mona的核心机制

​ 我们根据经验，为自己准备了三个主线任务：

  • 输入/输出： 搞清楚Mona模块的forward函数接收哪些输入，输出什么。记下它们的维度信息（如 [Batch, Num_Heads, Seq_Len, Head_Dim]）。
  • 作用位置： 明白Mona是在Transformer的哪个具体计算步骤中起作用的。是在Q, K, V投影之后，Attention分数计算之前吗？还是作用于FFN层？。
  • 核心参数： 知道rank (秩) 是控制Mona参数量的关键超参数。理解rank越大，引入的参数越多，拟合能力可能越强，但训练成本也越高。

Input/Output of Mona module

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
class MonaOp(nn.Module):
    def __init__(self, in_features):
        super().__init__()
        self.conv1 = nn.Conv2d(in_features, in_features, kernel_size=3, padding=3 // 2, groups=in_features)
        self.conv2 = nn.Conv2d(in_features, in_features, kernel_size=5, padding=5 // 2, groups=in_features)
        self.conv3 = nn.Conv2d(in_features, in_features, kernel_size=7, padding=7 // 2, groups=in_features)
		# 三个并行的 深度可分离卷积
        self.projector = nn.Conv2d(in_features, in_features, kernel_size=1, )
		# 用于特征融合
    def forward(self, x):
        identity = x # 用于第一个残差连接
        conv1_x = self.conv1(x)
        conv2_x = self.conv2(x)
        conv3_x = self.conv3(x)

        x = (conv1_x + conv2_x + conv3_x) / 3.0 + identity

        identity = x # 用于第二个残差连接

        x = self.projector(x)

        return identity + x

class Mona(BaseModule):
    def __init__(self,
                 in_dim,
                 factor=4):
        super().__init__()

        self.project1 = nn.Linear(in_dim, 64) # 降维至64
        self.nonlinear = F.gelu
        self.project2 = nn.Linear(64, in_dim) # 从64升维

        self.dropout = nn.Dropout(p=0.1)

        self.adapter_conv = MonaOp(64)

        self.norm = nn.LayerNorm(in_dim)
        self.gamma = nn.Parameter(torch.ones(in_dim) * 1e-6)
        self.gammax = nn.Parameter(torch.ones(in_dim))

    def forward(self, x, hw_shapes=None):
        identity = x

        x = self.norm(x) * self.gamma + x * self.gammax

        project1 = self.project1(x)

        b, n, c = project1.shape
        h, w = hw_shapes
        project1 = project1.reshape(b, h, w, c).permute(0, 3, 1, 2)
        # 序列[B, L, 64] ==> 图像网格 [B, 64, H, W]，要用到参数hw_shapes
        project1 = self.adapter_conv(project1)
        project1 = project1.permute(0, 2, 3, 1).reshape(b, n, c)

        nonlinear = self.nonlinear(project1)
        nonlinear = self.dropout(nonlinear)
        project2 = self.project2(nonlinear)

        return identity + project2

Mona 模块的 forward 函数接收 两个 input：

  1. x: 这是主要的特征张量，是上一层（MSA或MLP）的输出。
    • 维度: [B, L, C]
      • B: Batch Size
      • L: Sequence Length = H * W
      • C: Channel / Embedding Dimension (特征维度)
  2. hw_shapes: 这是一个包含特征图高度和宽度的元组 (tuple)。
    • 作用: 这个参数至关重要，因为 Mona 模块内部需要进行卷积操作。它必须知道如何将长度为 L 的序列 x 重新塑形 (reshape) 回 [H, W] 的二维空间网格。

Mona 模块的 forward 函数输出 一个 output：

  1. identity + project2:
    • 维度: [B, L, C]
      • 输出的维度与输入的特征张量 x 完全相同。这是为了确保它可以无缝地接入Transformer的残差连接结构中。

Action Position

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
class SwinTransformerBlock(nn.Module):
    """ Swin Transformer Block.

    Args:
        dim (int): Number of input channels.
        num_heads (int): Number of attention heads.
        window_size (int): Window size.
        shift_size (int): Shift size for SW-MSA.
        mlp_ratio (float): Ratio of mlp hidden dim to embedding dim.
        qkv_bias (bool, optional): If True, add a learnable bias to query, key, value. Default: True
        qk_scale (float | None, optional): Override default qk scale of head_dim ** -0.5 if set.
        drop (float, optional): Dropout rate. Default: 0.0
        attn_drop (float, optional): Attention dropout rate. Default: 0.0
        drop_path (float, optional): Stochastic depth rate. Default: 0.0
        act_layer (nn.Module, optional): Activation layer. Default: nn.GELU
        norm_layer (nn.Module, optional): Normalization layer.  Default: nn.LayerNorm
    """

    def __init__(self, dim, num_heads, window_size=7, shift_size=0,
                 mlp_ratio=4., qkv_bias=True, qk_scale=None, drop=0., attn_drop=0., drop_path=0.,
                 act_layer=nn.GELU, norm_layer=nn.LayerNorm):
        super().__init__()
        self.dim = dim
        self.num_heads = num_heads
        self.window_size = window_size
        self.shift_size = shift_size
        self.mlp_ratio = mlp_ratio
        assert 0 <= self.shift_size < self.window_size, "shift_size must in 0-window_size"

        self.norm1 = norm_layer(dim)
        self.attn = WindowAttention(
            dim, window_size=to_2tuple(self.window_size), num_heads=num_heads,
            qkv_bias=qkv_bias, qk_scale=qk_scale, attn_drop=attn_drop, proj_drop=drop)

        self.drop_path = DropPath(drop_path) if drop_path > 0. else nn.Identity()
        self.norm2 = norm_layer(dim)
        mlp_hidden_dim = int(dim * mlp_ratio)
        self.mlp = Mlp(in_features=dim, hidden_features=mlp_hidden_dim, act_layer=act_layer, drop=drop)

        self.H = None
        self.W = None

        self.my_module_1 = Mona(dim, 8)
        self.my_module_2 = Mona(dim, 8) # Adapter_FFN(dim, 8)

    def forward(self, x, mask_matrix):
        """ Forward function.

        Args:
            x: Input feature, tensor size (B, H*W, C).
            H, W: Spatial resolution of the input feature.
            mask_matrix: Attention mask for cyclic shift.
        """
        B, L, C = x.shape
        H, W = self.H, self.W
        assert L == H * W, "input feature has wrong size"

        shortcut = x
        x = self.norm1(x)
        x = x.view(B, H, W, C)

        # pad feature maps to multiples of window size
        pad_l = pad_t = 0
        pad_r = (self.window_size - W % self.window_size) % self.window_size
        pad_b = (self.window_size - H % self.window_size) % self.window_size
        x = F.pad(x, (0, 0, pad_l, pad_r, pad_t, pad_b))
        _, Hp, Wp, _ = x.shape

        # cyclic shift
        if self.shift_size > 0:
            shifted_x = torch.roll(x, shifts=(-self.shift_size, -self.shift_size), dims=(1, 2))
            attn_mask = mask_matrix
        else:
            shifted_x = x
            attn_mask = None

        # partition windows
        x_windows = window_partition(shifted_x, self.window_size)  # nW*B, window_size, window_size, C
        x_windows = x_windows.view(-1, self.window_size * self.window_size, C)  # nW*B, window_size*window_size, C

        # W-MSA/SW-MSA
        attn_windows = self.attn(x_windows, mask=attn_mask)  # nW*B, window_size*window_size, C

        # merge windows
        attn_windows = attn_windows.view(-1, self.window_size, self.window_size, C)
        shifted_x = window_reverse(attn_windows, self.window_size, Hp, Wp)  # B H' W' C

        # reverse cyclic shift
        if self.shift_size > 0:
            x = torch.roll(shifted_x, shifts=(self.shift_size, self.shift_size), dims=(1, 2))
        else:
            x = shifted_x

        if pad_r > 0 or pad_b > 0:
            x = x[:, :H, :W, :].contiguous()

        x = x.view(B, H * W, C)

        # my_adapter
        # x = self.my_module_1(x)

        x = shortcut + self.drop_path(x)

        x = self.my_module_1(x,(H,W))

        identity = x
        x = self.norm2(x)

        # my_adapter2
        # x = self.my_module_2(x)

        # FFN
        x = self.mlp(x)

        # x = self.my_module_2(x)  # todo: correct

        x = identity + self.drop_path(x)

        x = self.my_module_2(x,(H,W))  # todo: correct

        return x

SwinTransformerBlock的forward函数中调用两次Mona模块：

  1. self.my_module1:

    位于MSA(Multi-Self-Attention)之后，接收经过MSA和其残差连接的特征，并对之进行适配。

  2. self.my_module2:

    位于MLP之后，接收经过MLP和其残差连接的特征，也同样进行适配。

因此Mona是一个独立的后处理模块，被放置在 Transformer Block 的两个核心计算单元（MSA 和 MLP）的输出位置，对它们的处理结果进行增强和适配。

Core Parameters

1
2
3
self.project1 = nn.Linear(in_dim, 64) # Down-projection to n=64
self.project2 = nn.Linear(64, in_dim) # Up-projection from n=64
self.adapter_conv = MonaOp(64)       # Convolutions operate on n=64 channels

核心超参数: 中间维度 n

​ n 的大小直接控制了 Mona 模块的参数量和计算复杂度。n 越大，降维后的信息损失越少，拟合能力可能越强，但同时引入的参数也越多。
